Clutch Working Principle Facts You Should Know – 2024 Guide

In order to become an expert driver, they are parts of the car which you need to have a mastery of any one of those parts is the clutch. As a driver, you are expected to know how this part really works so that you can drive smoothly.

Most drivers these days remarkably do not have an understanding of how this automobile part functions which is a risky starting point due to its importance in driving.

Of course, you are not expected to know everything about how the clutches work before getting into driving since that may require some mechanical knowledge but it won’t cause you anything to understand some crucial aspects of how these clutches work.

In fact, this will enable you to take care of warning signs and also notify when your car needs the attention of a mechanic.

Clutch Working Principle

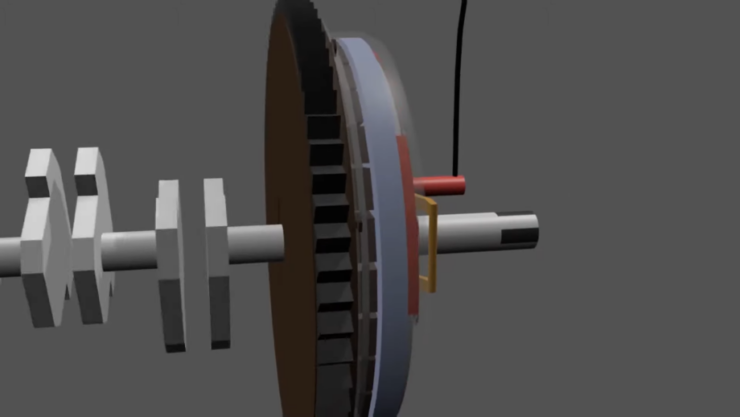

Manual Clutch Working Principle and Animation

Have you ever bothered to find out what really happens when you push down your clutch pedal? Without the clutches in the car, we would not have the ability to disengage the power of the engine or even change the car gears.

So the question now is how do these clutches really work?

Clutches are used to attach 2 moving shafts that are moving at multiple rates. This enables us to unlock the power of the engine and drive off smoothly with the engine working perfectly well.

So before we learn how clutches really work, let’s first have a mastery of the different parts that make up the clutch.

What are the different parts of a clutch?

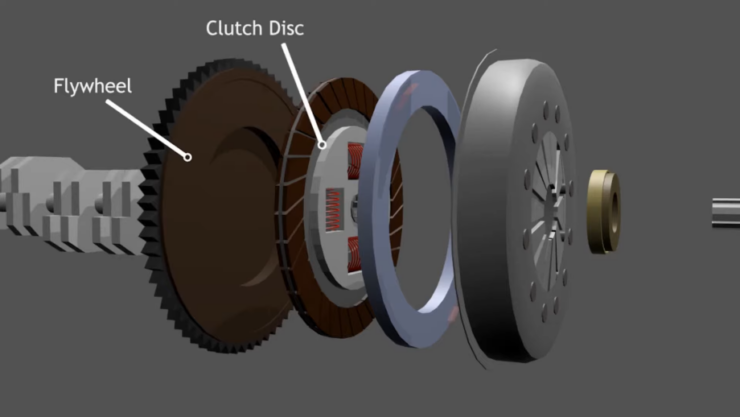

Manual Clutch Working Principle

A number of major components are combined to make up the clutch. The first is flywheel which is attached to the engine, created to that resists any kind of changes in speed as the car is moving.

We also have the clutch plate which is attached to the transmission. Then the pressure plate which takes care of the friction in the clutch plate and the flywheel, it also controls a large proportion of the quantity of energy & gravity in the engine.

When the central part of the diaphragm spring is pressed in, a number of pins at the outer part of the springtime trigger it to draw the pressure plate far from the clutch disc.

This frees up the clutch from the rotating engine. The clutch bearing is another component which enables the level of smoothness between the shifts to remove the unnecessary noise.

Then we have the clutch housing and release fork which place force onto the pressure plate triggering the pressure plate fingers to be freed. The bell housing includes all of the clutch elements and the last component of the clutch is the gearbox.

How exactly do clutches really work?

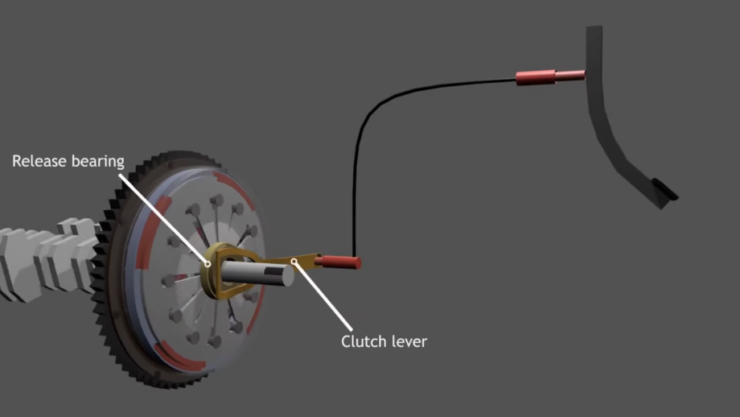

Manual Clutch Working

All Cars have a gearbox that has a number of rotating shafts. Clutches have 2 revolving shafts with one driven by the motor while the other shafts are driving by some other devices.

Your clutch is connected to the shafts to enable them to spin at the same time. The shafts connect with the clutches to enable them to spin at the various rates.

Let’s take a practical example to best illustrate this concept, take a drilling machine for example, in this machine one of the shafts is driven by pulley while the other shifts drive the drill chuck.

Basically, the clutch performs the duty of linking these two shafts together in order to make sure they are secured and rotate at the same rate or to be decoupled to spin at different speeds to ensure the smooth functioning of the system.

Coming now to the cars, the clutch links the wheel shaft to the shaft in the engine. As the engine moves faster, some extra changes need to be made before it connects to the wheel while another gear is engaged.

As the car moves, the engine spins continuously, however the car’s wheels do not, so the clutch is then required.

In order to prevent the car movements from spoiling the engine, the wheels are supposed to be detached from the engine in some way and that is where the clutch then comes in to enable the functioning of the wheel and engine.

The clutch consists of some friction discs that move between each with the flywheel. The clutch works as a result of frictional movements between the clutch plate and the flywheel. These parts interact to bring about these movements.

To comprehend just how a clutch functions, you need to have some knowledge about friction, this process seems a little complex, but this explanation has surely given you a clearer image of the processes that take place whenever you change the gears.

The exact same principle applies even if you are using a manual or automated vehicle.

Basically, they are different types of clutch systems which are the wet and dry system. The wet clutch is been covered with a lubricant that has actually been stacked with multiple discs that make up for the friction while the dry clutch works only with friction because the clutch has not been coated with the lubricant.

Considering that a protective layer of oil has actually not been added to the dry clutch.

The Warning Signs you need to be aware of when using your clutch

The clutch system is a very important component of your car so you need to give constant attention to it and make sure it is always examined by your mechanic who has adequate knowledge of how clutches work.

Always endeavor to service your vehicle from time to time to avoid awkward and hazardous driving. As the clutch is very essential in the operation of your vehicle, you need to be sure when it needs your attention. Below are some points to help you find the warning signs in your clutch.

When driving a Manual Car slowly in Traffic it is obvious you might decide to just push in your clutch for when moving forward slowly.

When you keep the habit of always doing this, it will make your clutch plate and cause getting to keep heating and may sometimes even overheat. This situation can result in the emission of a burning smell which results in smoke coming out from under your car.

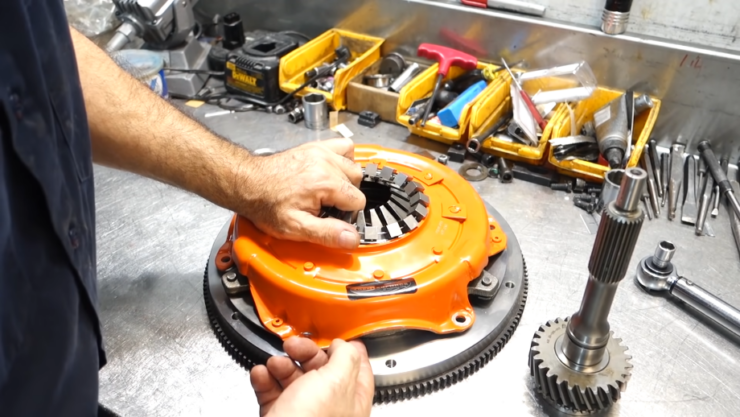

Learn How a Clutch Works

We also have the slippage of a used clutch. When you are carrying heavy loads with your car, the gear will certainly have a tendency to disengage.

When you notice that your car sometimes slips off the gear, then you have to be warned because the safety of your clutch is at risk and needs the attention of a mechanic.
